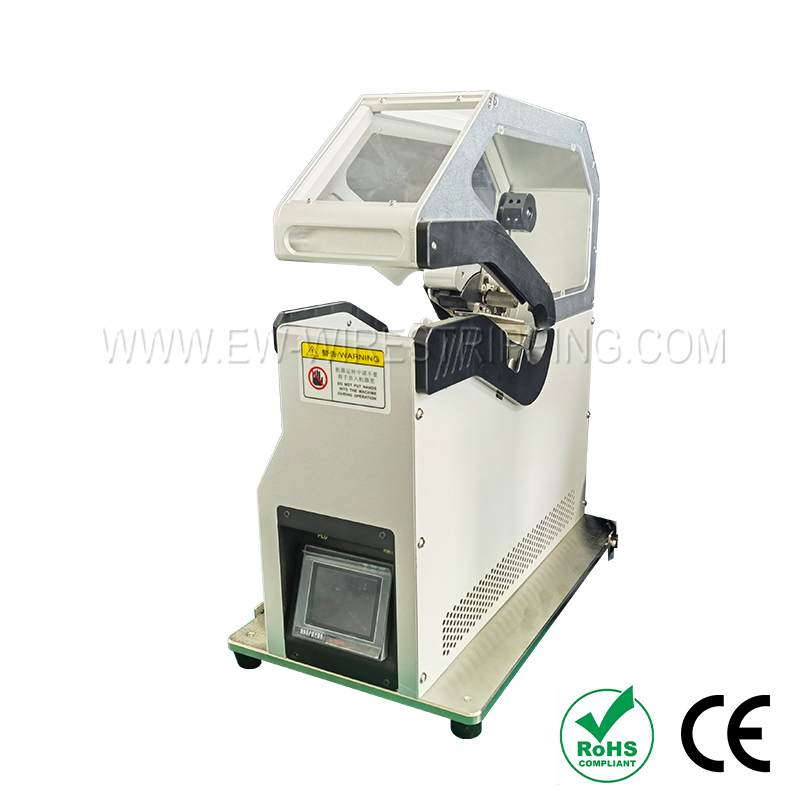

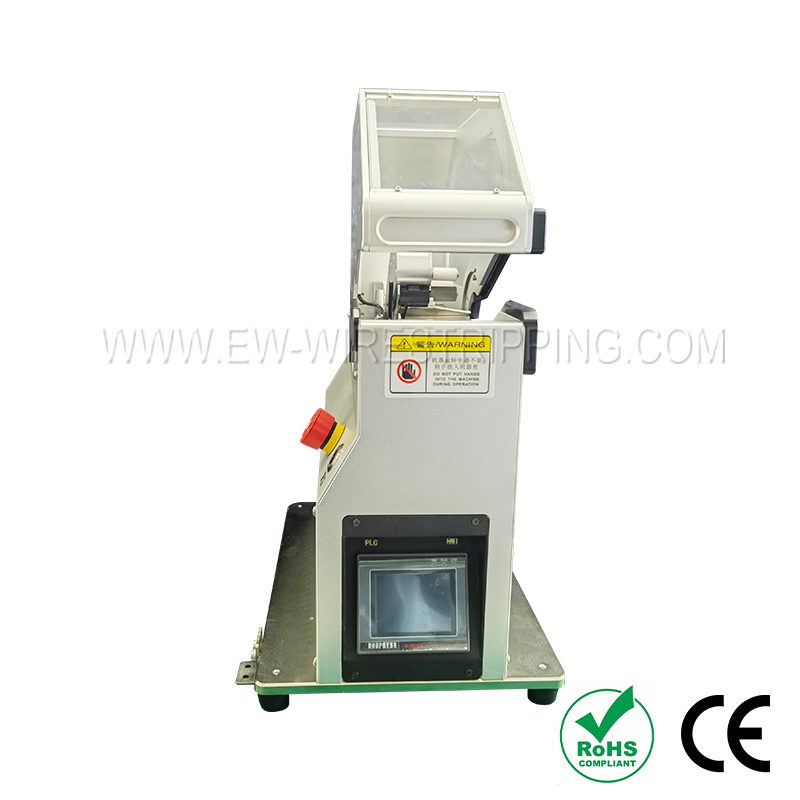

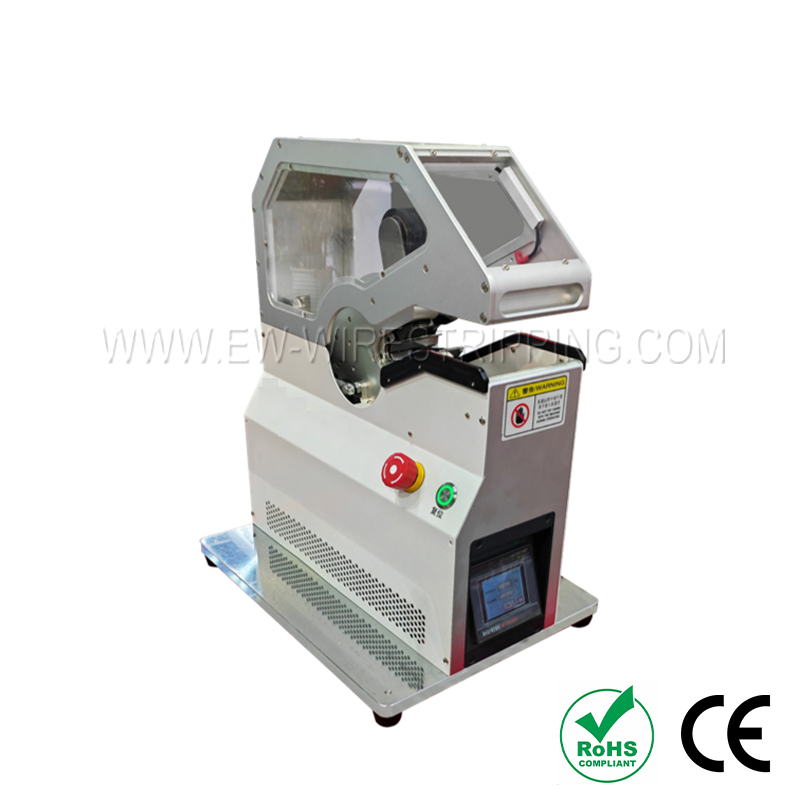

Desktop automatic wire tape machine
Tape Bundling
62
Model：Desktop automatic wire tape machine
Model:EW-1860
Wire harness length:≥200mm
Wire harness diameter:2-18mm
Tape speed:280-460 RPM
Wire harness length:≥200mm
Wire harness diameter:2-18mm
Tape speed:280-460 RPM
Technical Data
|
Model |
EW-1860 |
|
Dimensions |
385*300*330mm |
|
Rated voltage |
110V/220V (AC) (±10%) |
|
Wire harness length |
≥200mm |
|
Wire harness diameter |
2-18mm |
|
Tape speed |
280-460 RPM |
|
Control buttons |
Start, Pause, Stop |
|
Applicable tape |
9-19mm wide PVC, cotton, felt, etc. |
|
Air source |
N/A |
|
Pedal start |
Yes |
Feature
The desktop branch wire gluing machine is a gluing device for short and thin wires, suitable for gluing branches of wire harnesses. The special design solves the problem of twisting of thin wire harnesses during gluing. The device controls the gluing of wire harnesses by stepping on the pedal, which can significantly improve the gluing efficiency. The surface of the wrapping layer is beautiful and smooth. The attached scale can ensure the length of the wire harness gluing.

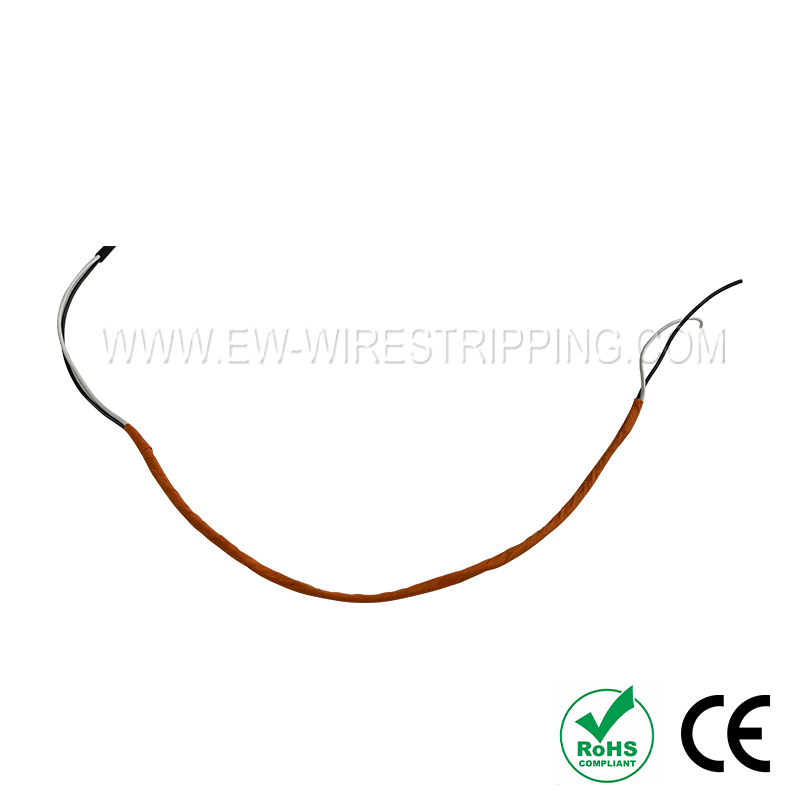

This machine can wrap thin wires without twisting them, and open corrugated tubes without shrinking them. For wire harnesses with fewer branches, this machine can bypass the branches and perform uninterrupted tape wrapping.
