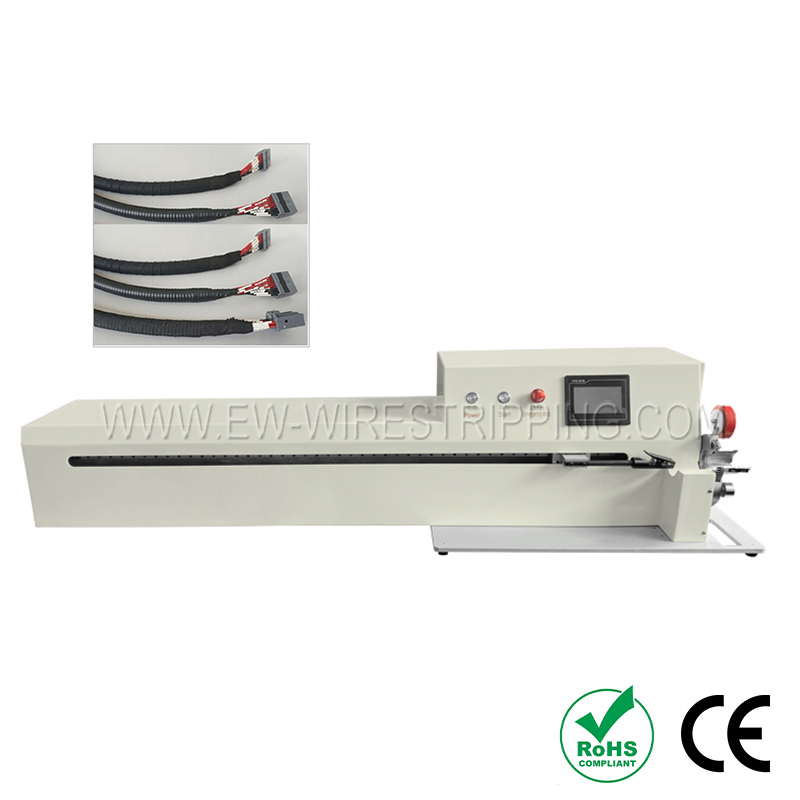

Automatic traction tape wrapping machine
Tape Bundling
66
Model：Automatic traction tape wrapping machine
Model EW-1865
Tape Specifications <20mm(customizable)
Inner diameter specifications Standard 25/32/38;
Applicable wire diameter:3-40mm
Winding length 1 meter (unlimited, customizable)
Winding method Full wrap, dot wrap, flower wrap, interval wrap
Tape Specifications <20mm(customizable)
Inner diameter specifications Standard 25/32/38;
Applicable wire diameter:3-40mm
Winding length 1 meter (unlimited, customizable)
Winding method Full wrap, dot wrap, flower wrap, interval wrap
Technical Data
|
Product Name |
Automatic traction tape wrapping machine |
|
Model |
EW-1865 |
|
Operation Page |
High-definition touch screen operation |
|
Tape Specifications |
<20mm(customizable) |
|
Inner diameter specifications |
Standard 25/32/38; 76 or other specifications can be customized |
|
volume |
L1532*W380*H363mm (excluding protrusions) |
|
net weight |
42KG |
|
Applicable wire diameter |
3-40mm |
|
Winding length |
1 meter (unlimited, customizable) |
|
Winding speed |
10R/s |
|
Tape Type |
Cloth base, electrical tape, PVC tape, acetate tape, etc. |
|
Drive mode |
Motor |
|
Winding method |
Full wrap, dot wrap, flower wrap, interval wrap |
Feature
● This machine uses the domestic first-line brand Kunlun Tongtai full HD color touch LCD screen plus the single-chip self-developed motion control board, which is more efficient and stable.
● All actions of this machine are controlled by motors. The whole machine does not require an air source, and the motor is smoother, more stable and less noisy.
● It is suitable for the wrapping of tape after the middle joint is crimped.
● The tape length is adjusted digitally, which is convenient, fast and accurate.
●. The machine wrapping quality is stable, the efficiency is high, and the operation intensity can be reduced.

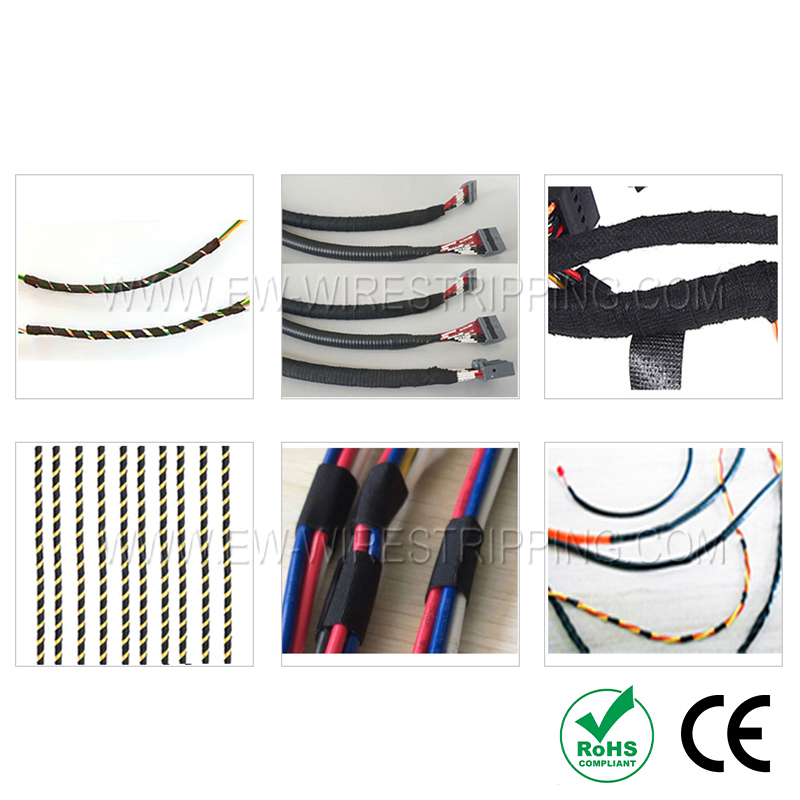

Application Range
