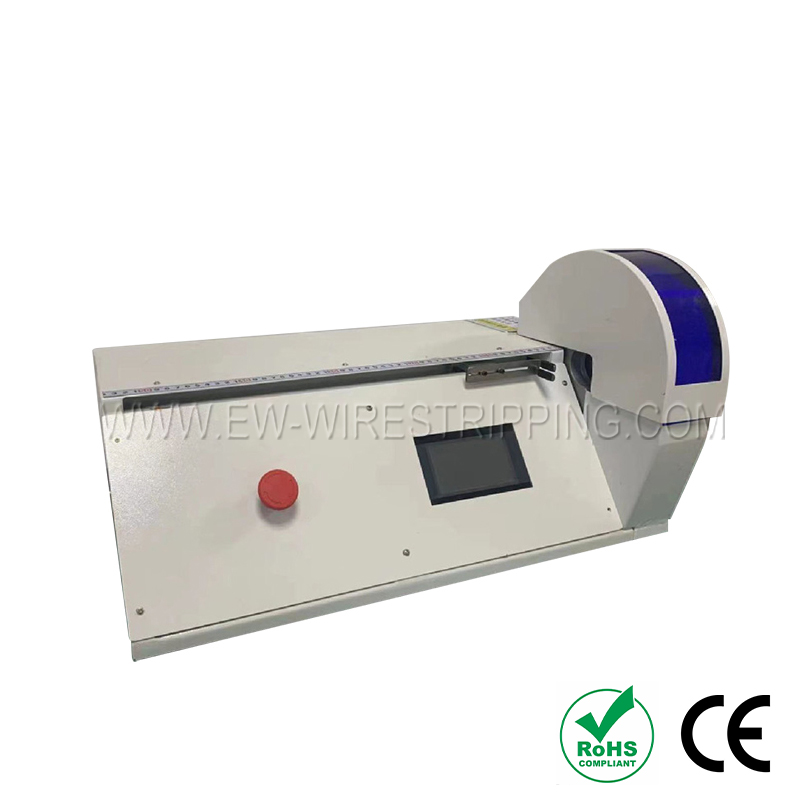

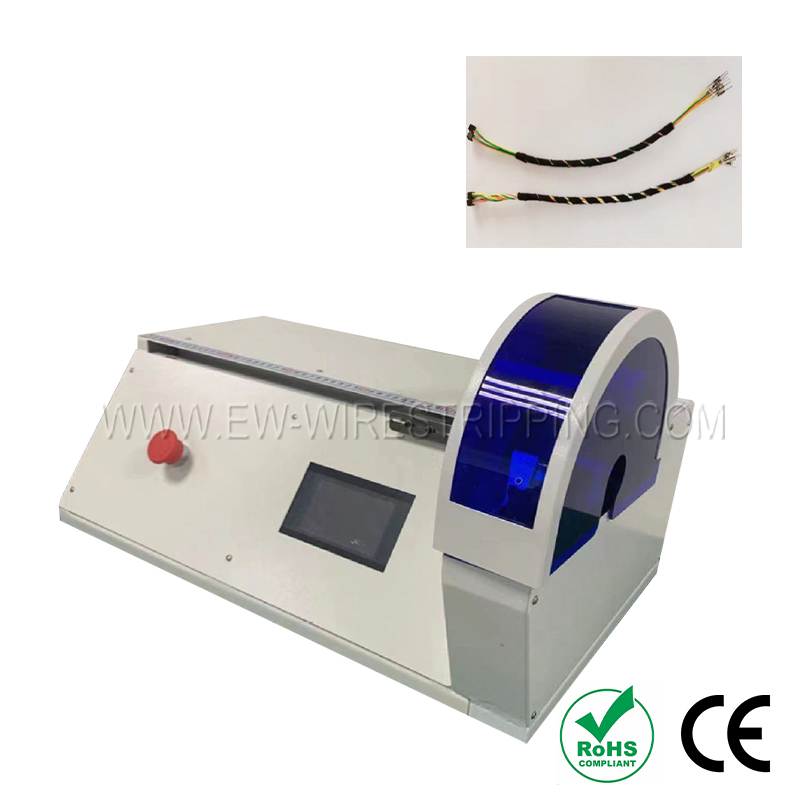

Half-meter tape winding machine
Tape Bundling
67
Model：Half-meter tape winding machine
Model:EW-1835
Tape width:5-20MM
Applicable wire diameter:2-15mm
Wrapping stroke:Maximum 50cm
Rotor speed:5 turns/second
Tape width:5-20MM
Applicable wire diameter:2-15mm
Wrapping stroke:Maximum 50cm
Rotor speed:5 turns/second
Technical Data
|
Model |
EW-1835 |
|
Tape width |
5-20MM |
|
Applicable materials |
Applicable to various materials of tape, PVC, cloth base, velvet base, various high-temperature fiberglass tapes |
|
Applicable wire diameter |
2-15mm (customizable beyond this range) |
|
Dimensions |
650 length * 400 width * 250mm height |
|
Input power |
220V/AC |
|
Wrapping stroke |
Maximum 50cm |
|
Rotor speed |
5 turns/second |
|
Traction speed |
0.15 meters/second |
|
Wrapping effect |
Flower wrapping and continuous wrapping, the overlapping part of the tape can be adjusted. If it exceeds the above standard machine range, it can be customized by sample evaluation. |
|
Air source |
N/A,pure electric |
|
Pedal start |
Yes |
Feature
1. Exclusively designed and developed products, specially customized for wire harness length, winding length of about 50cm.
2. The machine adopts pure electric mechanical principle, no external air source is required, convenient for workshop operation.

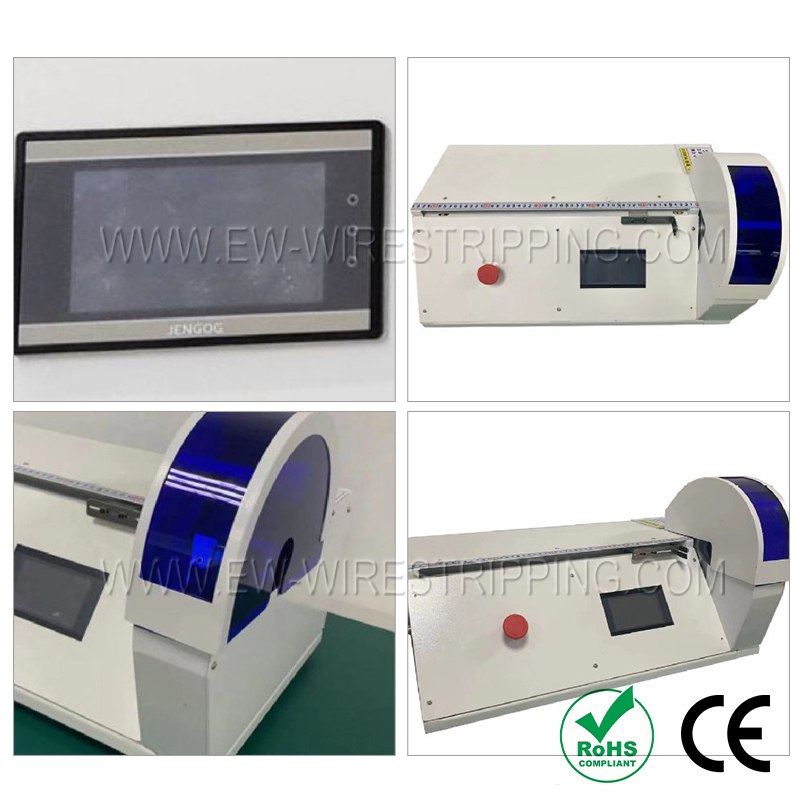

3. The machine adopts PLC touch screen control, winding head speed, traction displacement speed and other parameters are adjustable, multiple parameters can be input and saved at the same time, convenient for the use of various products.

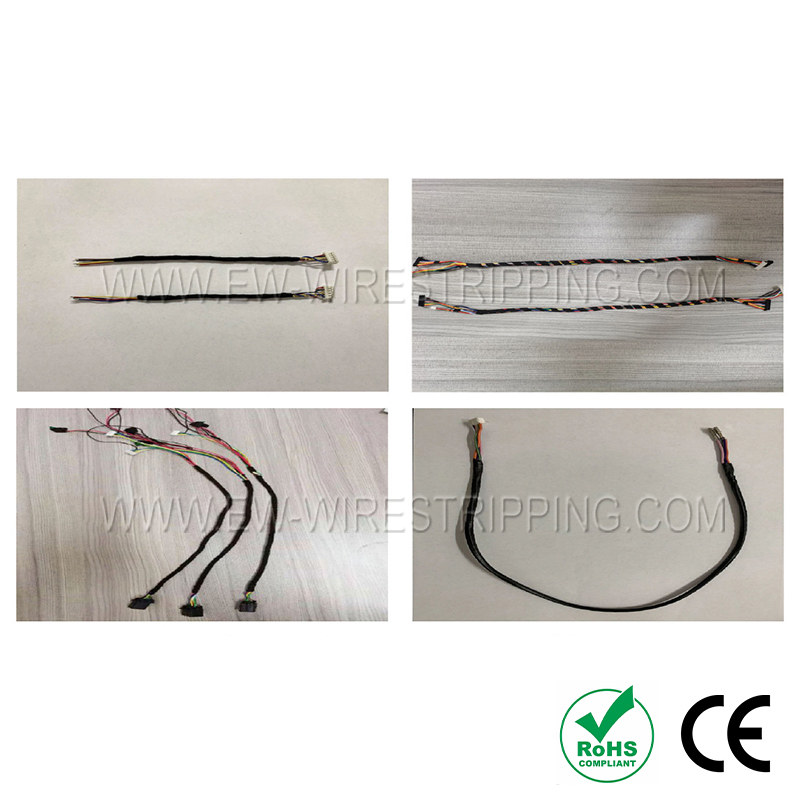

Application Range
