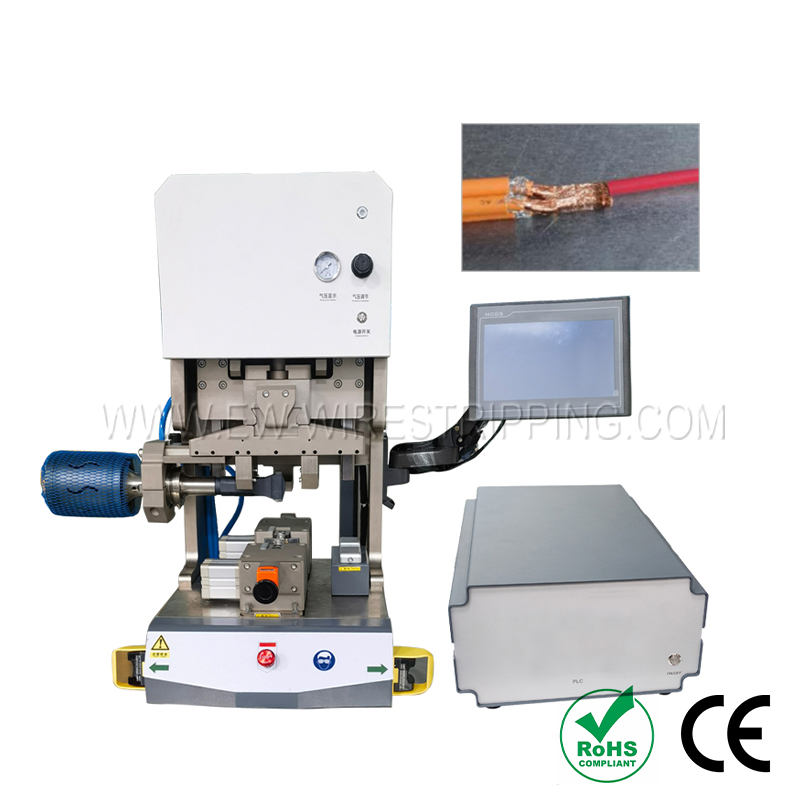

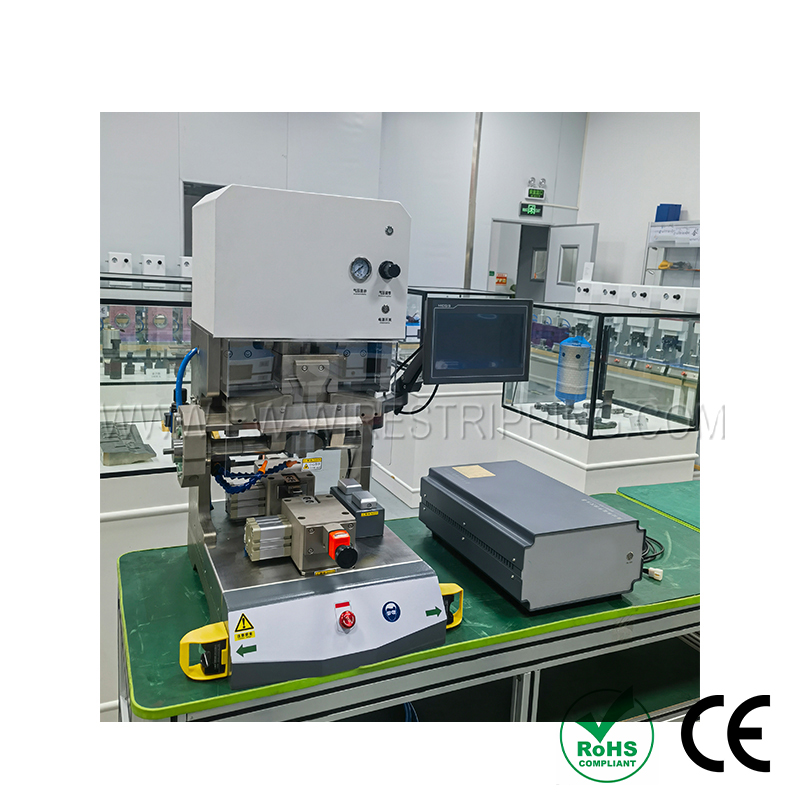

Universal thick cable ultrasonic welding machine
Cable Solder& Weld Machine
92
Model：Universal thick cable ultrasonic welding machine
Model： EW-6145
Language： Chinese/English
voltage： 110/220V
Max. Power： 8000W
Frequency： 20HZ
Welding time： 0.5S-2S
Welding range： 25-70mm²
Operating humidity：0-40°
Working air pressure： 0.2-0.8Mpa
Ambient temperature：20-70℃
Frame dimensions： 90*58*85cm
Electrical box dimensions：46*33*17cm
Machine weight：70KG
Language： Chinese/English
voltage： 110/220V
Max. Power： 8000W
Frequency： 20HZ
Welding time： 0.5S-2S
Welding range： 25-70mm²
Operating humidity：0-40°
Working air pressure： 0.2-0.8Mpa
Ambient temperature：20-70℃
Frame dimensions： 90*58*85cm
Electrical box dimensions：46*33*17cm
Machine weight：70KG
Technical Data
|
Model |
EW-6145 |
|
Language |
Chinese/English |
|
voltage |
110/220V |
|
Max. Power
|
8000W |
|
Frequency |
20HZ |
|
Welding time |
0.5S-2S |
|
Welding range |
25-70mm² |
|
Operating humidity |
0-40° |
|
Working air pressure |
0.2-0.8Mpa |
|
Ambient temperature |
20-70 |
|
Frame dimensions |
90*58*85cm |
|
Electrical box dimensions |
46*33*17cm |
|
Machine weight |
70KG |
Feature
● Digital circuit, time mode, adjustable amplitude, automatic frequency tracking, intelligent protection, welding workpiece vibration drop,
Chinese/English switching.
● Automatic frequency tracking (truly fully automatic frequency tracking, no need to adjust the frequency when changing heads)
● Dynamic indication of welding current, use time, power, amplitude and other parameters are displayed.
● Manual adjustment of frequency and overcurrent protection during welding
● Precision linear guides can ensure smooth operation of the equipment and optimal welding accuracy
● The power box maintains stable output when the voltage fluctuates.

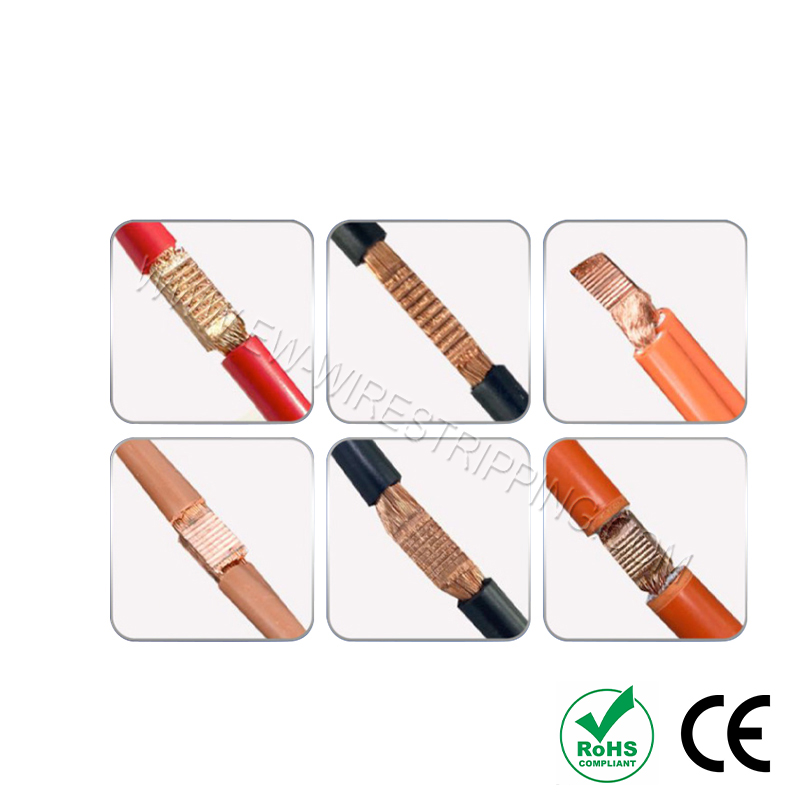

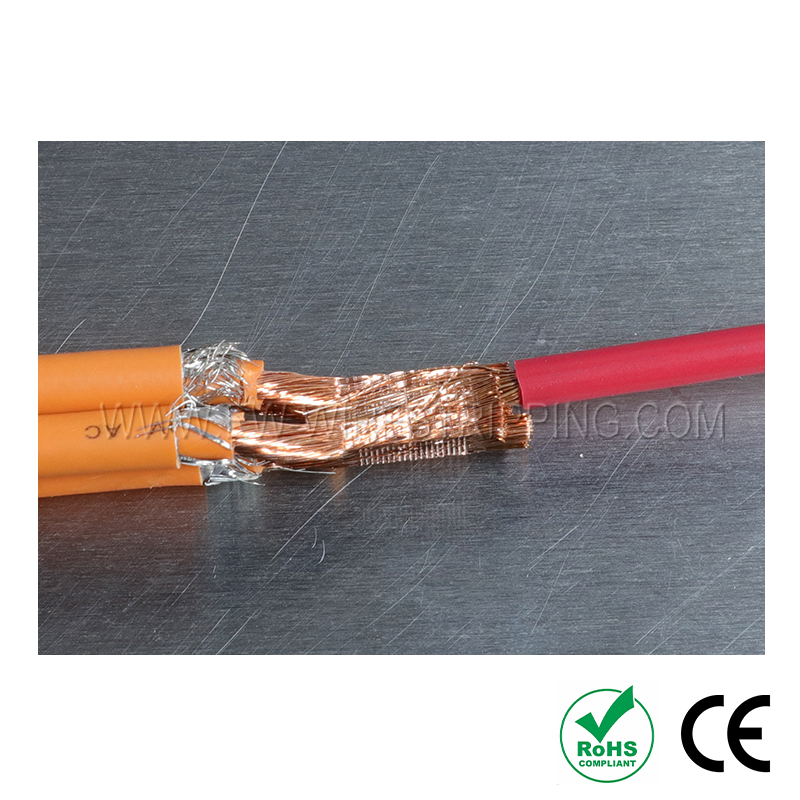

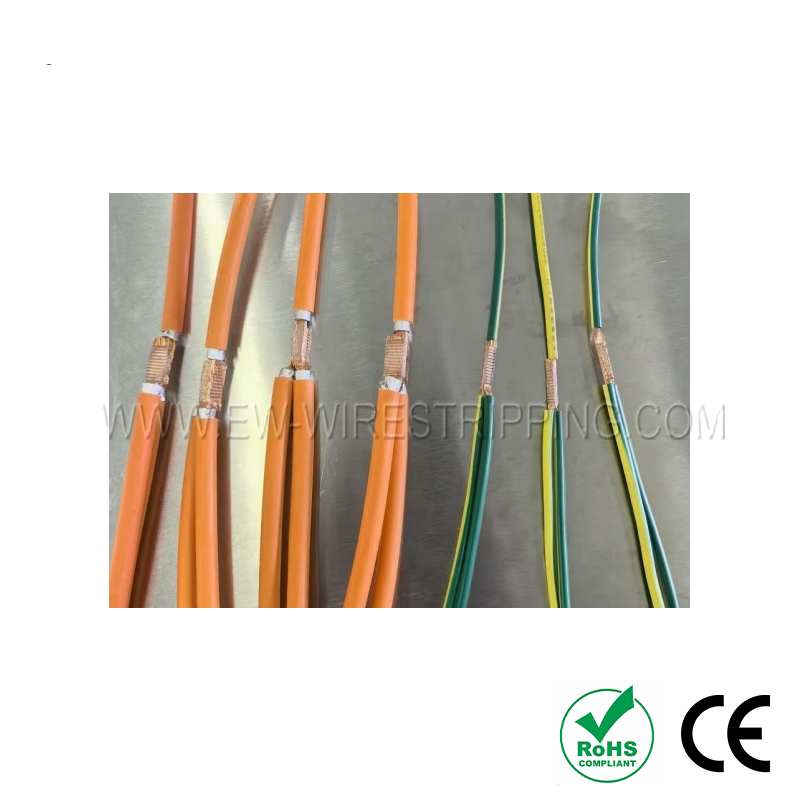

Application Range
