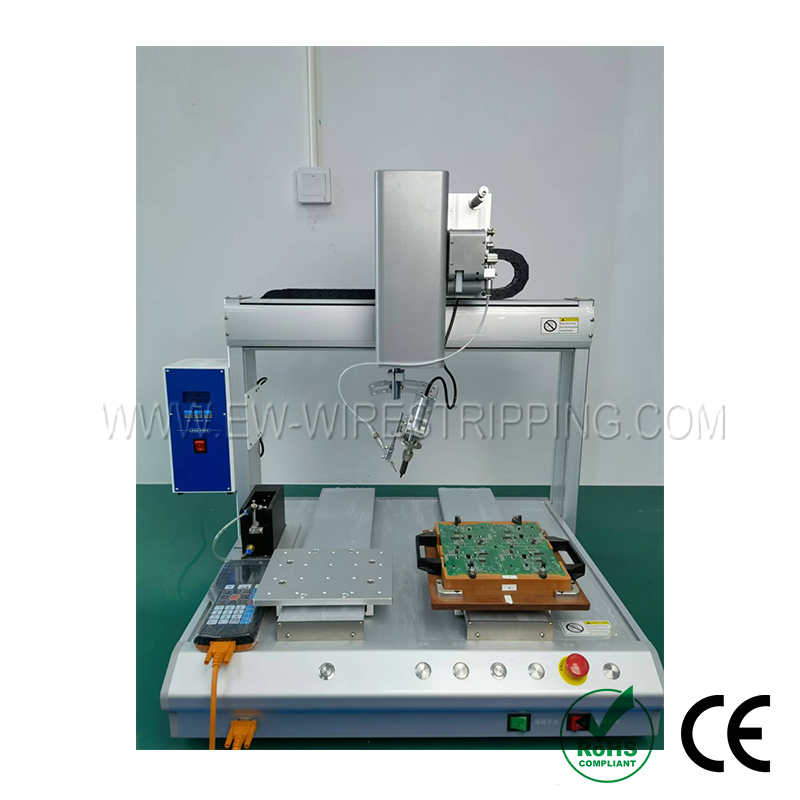

Double platform automatic rotating soldering machine
Cable Solder& Weld Machine
101
Model：Double platform automatic rotating soldering machine
Model: EW-6140
Temperature adjustment range: 0-500℃
Temperature error: ±2℃h
Maximum load on Y axis: 15kg
Movement speed (mm/sec): 0—800
Resolution capability: 0.01 mm/Axis
Repeat accuracy : ±0.02 mm/ Axis
External control interface: RS232
Temperature adjustment range: 0-500℃
Temperature error: ±2℃h
Maximum load on Y axis: 15kg
Movement speed (mm/sec): 0—800
Resolution capability: 0.01 mm/Axis
Repeat accuracy : ±0.02 mm/ Axis
External control interface: RS232
Technical Data
|
Model |
EW-6140 |
|
Temperature adjustment range |
0-500℃ |
|
Temperature error |
±2℃h |
|
Soldering range X/Y/Z (mm) |
500/300/300/100/360° |
|
Maximum load on Y axis |
15kg |
|
Movement speed (mm/sec) |
0—800 |
|
Resolution capability |
0.01 mm/Axis |
|
Repeat accuracy |
± 0.02 mm/ Axis |
|
Program recording mode |
More than 100 groups |
|
Display mode |
LCD |
|
Motion interpolation function |
3 axis |
|
Voltage |
AC110V ~ 220V |
|
External control interface |
RS232 |
Feature
● Handheld teaching programmer. Rich programming instructions and easy programming operation.
● German Wilo heating element. Fast heating speed, precise temperature control, and strong sustainability.
● Can be equipped with various soldering iron tips.
● German Wilo thermostat. High and low temperature alarm, intelligent sleep, temperature compensation. Strong temperature control stability.

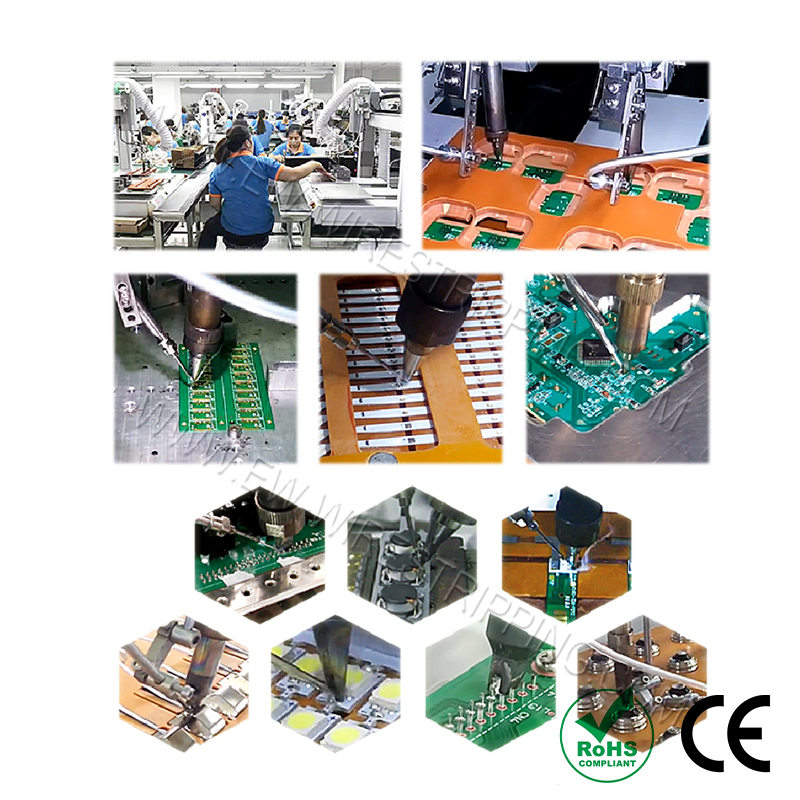

Application Range
