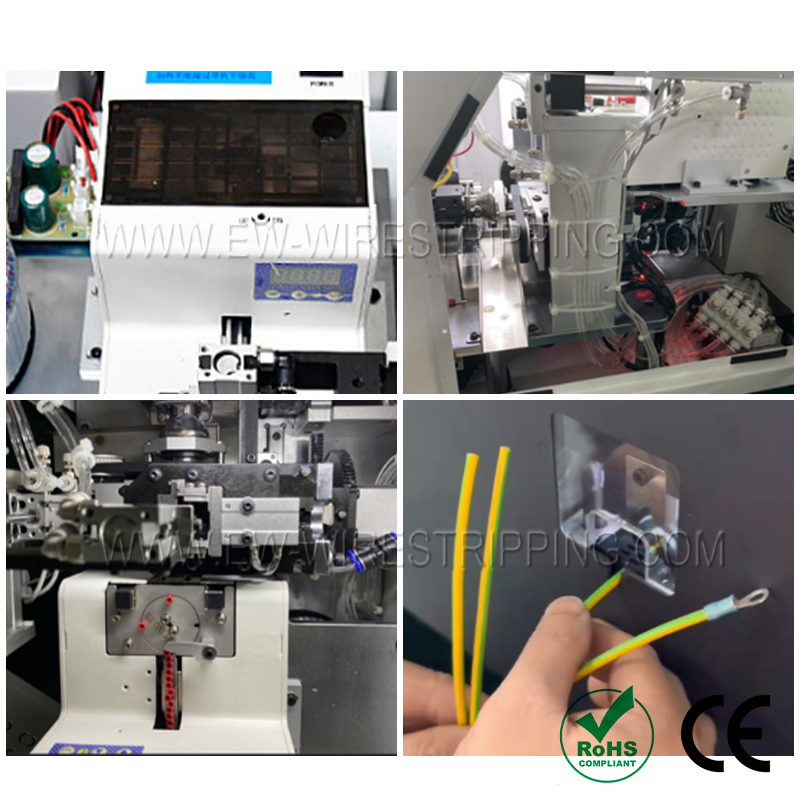

Pre-insulated terminal crimping machine
Electrical
11
Model：Pre-insulated terminal crimping machine
Model:EW-5560
Wire size:0.5 - 6 mm²
Maximum crimping length:12mm
Capacity:1000-1300 pcs./h
(depending on wire length)
Driving mode
Power supply
AC110V/AC220V (50 - 60 Hz)
Power:4.0KW
Weight:98KGS
Dimension:L550xW500xH420mm
Wire size:0.5 - 6 mm²
Maximum crimping length:12mm
Capacity:1000-1300 pcs./h
(depending on wire length)
Driving mode
Power supply
AC110V/AC220V (50 - 60 Hz)
Power:4.0KW
Weight:98KGS
Dimension:L550xW500xH420mm
Technical Data
|
Model |
EW-5560 |
|
Wire material |
High and low voltage wires, multi-layer shielded wires |
|
Wire size |
0.5 - 6 mm² |
|
Maximum crimping length |
12mm |
|
Stripping length |
The shortest outer sheath stripping range of the sheathed wire is 40mm. The core wire stripping length is 6-18mm. |
|
Blades material |
Tungsten steel |
|
Capacity |
1000-1300 pcs./h (depending on wire length) |
|
Driving mode |
Motor (servo motor)/ball screw |
|
Power supply |
AC110V/AC220V (50 - 60 Hz) |
|
Power |
4.0KW |
|
Weight |
98KGS |
|
Dimension |
L550xW500xH420mm |
Feature
● Fast servo crimping speed.
● Stable crimping size.
● No need to change crimping die for 0.5-2.5 square terminals.
● No material stuck on the track.
● More convenient wire twisting.
Application Range
