| Model | EW-15D |
| Crimping force | 4T |
| Power supply | AC110V/220V/60HZ/50HZ |
| Power Rating | 0.25KW |
| Motor Rating | 1.5KW |
| Weight | 65KGS |
| Dimension | 600*400*600mm |
● Powerful 4T Splicing Press:Delivers a robust 4T (4 Tons) crimping force driven by a high-capacity 1.5 kW motor rating. This ensures excellent structural compaction and highly consistent joint stability across heavy-duty wire joining tasks.
● Advanced Frequency Conversion: Utilizes variable frequency drive technology to maintain exceptional voltage stability and high-speed operation. This advanced energy-efficient system limits running power consumption to a low 0.25 kW rating while dramatically reducing active workshop noise.
● Electronic Precision Positioning:Features digital electronic positioning controls to achieve micro-level accuracy on every single crimp stroke. This precise calibration prevents wire misalignments, lowers material scrap rates, and guarantees clean production repeatability.
● Low-Maintenance & High Output:Engineered specifically for high-volume manufacturing lines with an optimized mechanical layout that requires minimal routine upkeep. The highly user-friendly interface allows rapid machine adjustments, making it incredibly easy to operate and repair.
● Mobile Compact Architecture:Built with a space-saving industrial chassis weighing 65 kg and measuring 600 x 400 x 600 mm. This lightweight yet rugged structure allows production managers to easily relocate the machine to optimize flexible factory layouts.

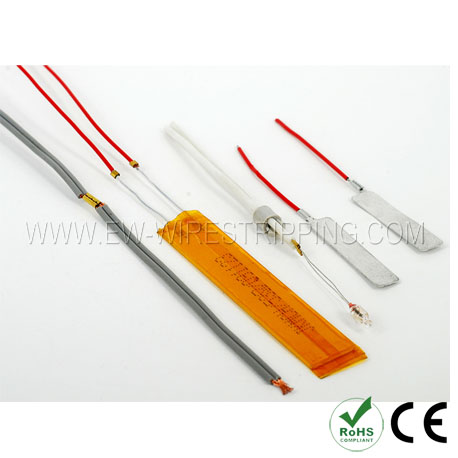

● Automotive Wire Harness Splicing: Core-to-core joining for vehicle sensor arrays, dashboard electrical networks, and lighting systems.
● Consumer Electronics Manufacturing:Mass-production wire connections for home appliances, power cords, and internal computer cabling.
● Copper Band / Tape Splicing: Delivering continuous, high-speed crimping utilizing bulk brass splicing tape for multi-wire groupings.
● Power Supply Component Production: Fastening heavy-duty internal jumpers inside industrial power transformers and switchgear systems.
Q1: What are the benefits of frequency conversion technology in a wire splicing machine?
A: Traditional splicing machines use standard motors that run continuously, consuming high electricity, creating constant noise, and accelerating mechanical wear. The EW-15D uses variable frequency conversion technology, meaning the motor activates and consumes power only during the exact millisecond of the active crimp stroke. This slashes power consumption down to 0.25 kW, provides extreme voltage stability, and ensures silent standby operation.
Q2: How does electronic precision positioning improve overall wire connection quality?
A: Mechanical clutch crimpers often suffer from kinetic drift, causing the upper die to hit at slightly different depths, which leads to loose splices or severed copper strands. The EW-15D integrates electronic precision positioning to monitor the exact top and bottom dead center of the crimp stroke. This micro-level calibration guarantees that every splice is pressed to the exact same compaction depth, ensuring consistent gas-tight connections.
Q3: Is the EW-15D easy to maintain and relocate on a busy factory floor?
A: Yes, the EW-15D is specifically engineered for high-output environments with a highly simplified internal mechanical structure, making routine lubrication and blade inspections fast and simple. Weighing only 65 kg and featuring a compact 600 mm footprint, it is a highly mobile desktop unit that can be easily moved by two operators to reorganize modern, agile production lines.
