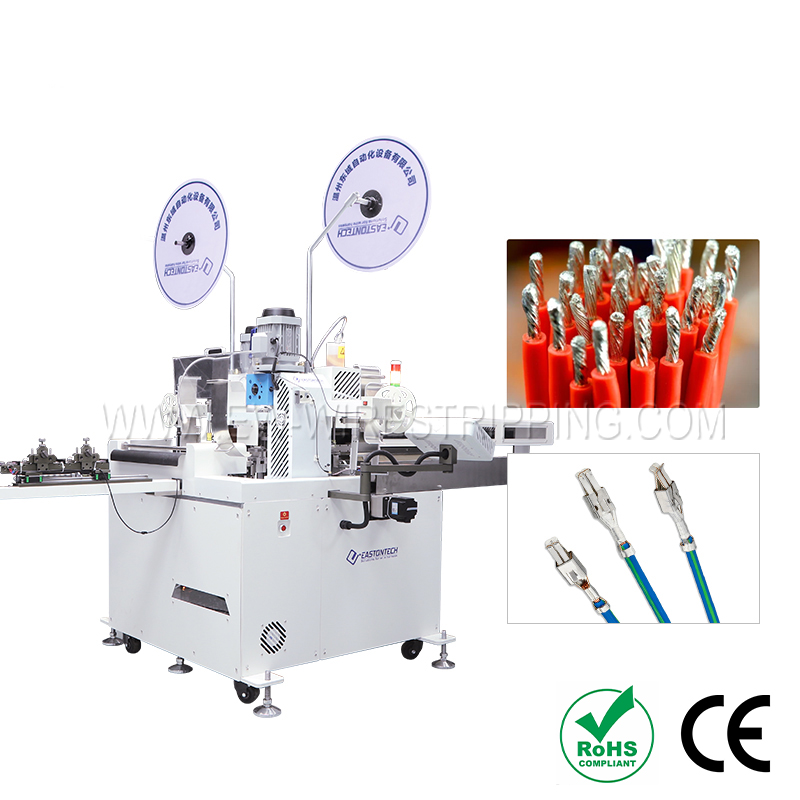

Model:EW-9370
Applicable wire range:30＃-16＃
Weight:450kg
Placement space:5M2
Display mode:Chinese touch screen LCD display
Power supply:AC220/50Hz
Power:3000W
Working pressure:About 6kg

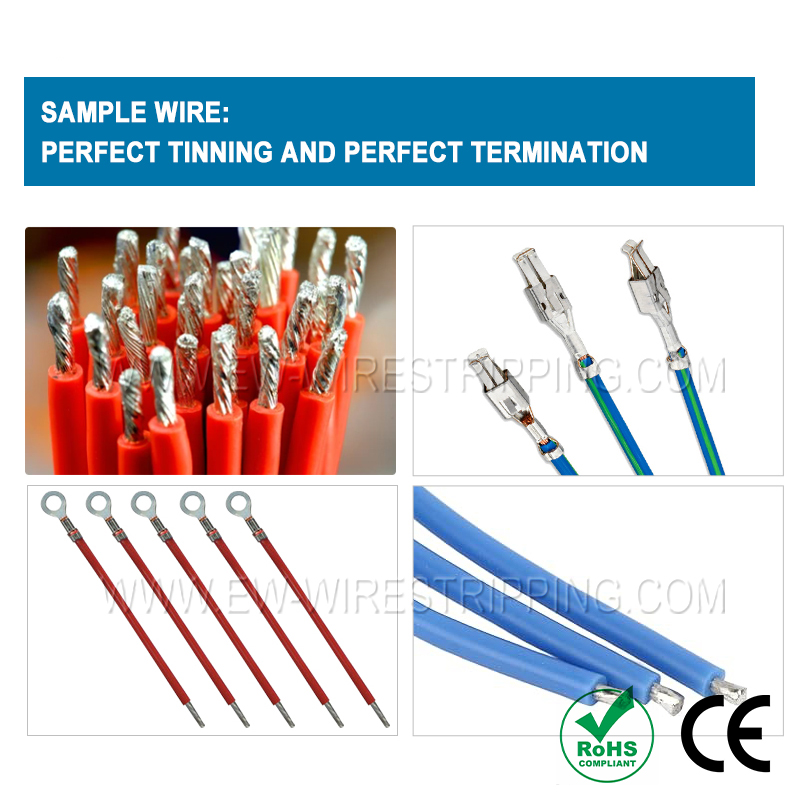

Product features:Multiple single-line double-end Crimping + rear end tinning
Applicable terminals:PH/XH/EH/SCN/SM/VH DuPont, etc.
Applicable wire:30＃-16＃
Number of lines uploaded at the same time:5-8 items, within 8 items

Technical Data

Model	EW-9370
weight	450kg
Placement space	5M2
Display mode	Chinese touch screen LCD display
power supply	AC220/50Hz
power	3000W
Working pressure	About 6kg
Product features	Multiple single-line double-end crimping + rear end tinning
Applicable terminals	PH/XH/EH/SCN/SM/VH DuPont, etc.
Applicable wire	30＃-16＃
Number of lines uploaded at the same time	5-8 items, within 8 items
Capacity	About 6000-8500 pieces/hour.
Stripping length	The front blade distance is 8mm, and the complete rubber removal capacity is 4.5mm; the rear blade distance is 14mm, and the complete rubber removal capacity is 10mm.
Ccutting length	The double-head marking machine can print within 50-950mm, and the single-head marking machine can print within 50-950mm. (Long-line can be customized)
tin dipping depth	Standard machine 14mm
Swing arm mode	Front and rear end translation servo brake
