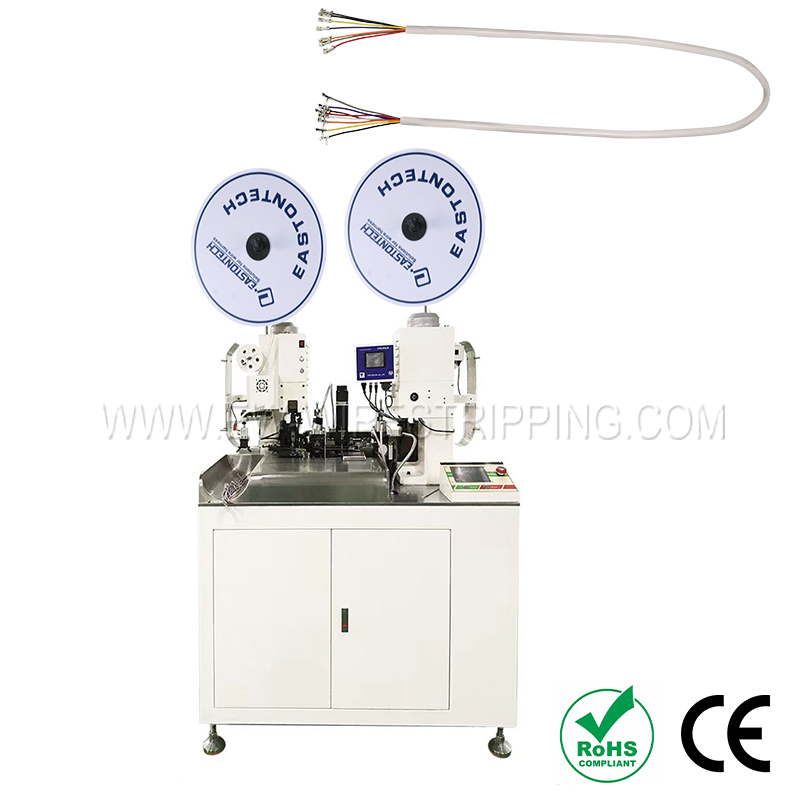

Model

EW-9235

Applicable wire diameter

AWG#20-28, OD 3-7mm

Inner stripping length

0-8 mm

Equipment efficiency

1100pcs/h (5 Pin; L=150 mm)

Outer stripping length

18-120 mm (4 Pin)

Inner stripping length

0-8mm

Cut length

110-9999 mm

Tube cutting length

0-30 mm (customizable)

Cut accuracy

±(0.1+0.005*L)mm

Crimp capacity

20kN

Air source

0.6-0.8Mpa

Ambient temperature

-5 to 40℃

Power supply

AC 220V/110V 50/60Hz

Power

3KW

Main body size

L1200*W900*H1860 mm

Pedal start

N/A
