Model |
EW-3255+C |
|
Display Mode |
10-inch human-machine interface |
|
Function |
Single-core wire, multi-core cable, shielded cable, high-strength steel wire rope fully automatic fixed-length cutting and stripping |
|
Wire type |
Single-core wire, multi-core cable, shielded cable, high-strength steel wire rope, etc. |
|
Processing range |
10-300 square meters |
|
Cutting length |
10mm-999999.99mm |
|
Cutting tolerance |
Within 0.002*L (L=cutting length) |
|
Stripping length |
Front stripping: 1 - 1000mm (thread end) |
|
Rear stripping: 1 - 300mm (line tail) |
|
|
Maximum diameter of the catheter |
Φ42 |
|
Wheel lifting method |
Servo motor lifting wheel |
|
Swing catheter method |
Cylinder swing guide |
|
Tool material |
High-quality imported high-speed steel |
|
Productivity (times/hour) |
1000 PCS/hour (depending on the length and size of the line) |
|
Drive mode |
Wire feeding: 32 wheels, each group is driven by independent servo Tool holder: double servo plus double screw (this machine: full servo motor configuration) |
|
Wire feeding method |
Belt feeding, no marks or scratches on the cables. (With stripping and pressurizing function) |
|
Lifting operation mode |
Digitally adjustable pressure roller height |
|
power supply |
AC220V 50/60Hz; Roptional 110V 50/60Hz |
|
Gas source |
0.5-0.8Mpa clean air source |
|
Dimensions (length * width * height) |
1720*700*1287 |
|
Net weight |
750KG |
|

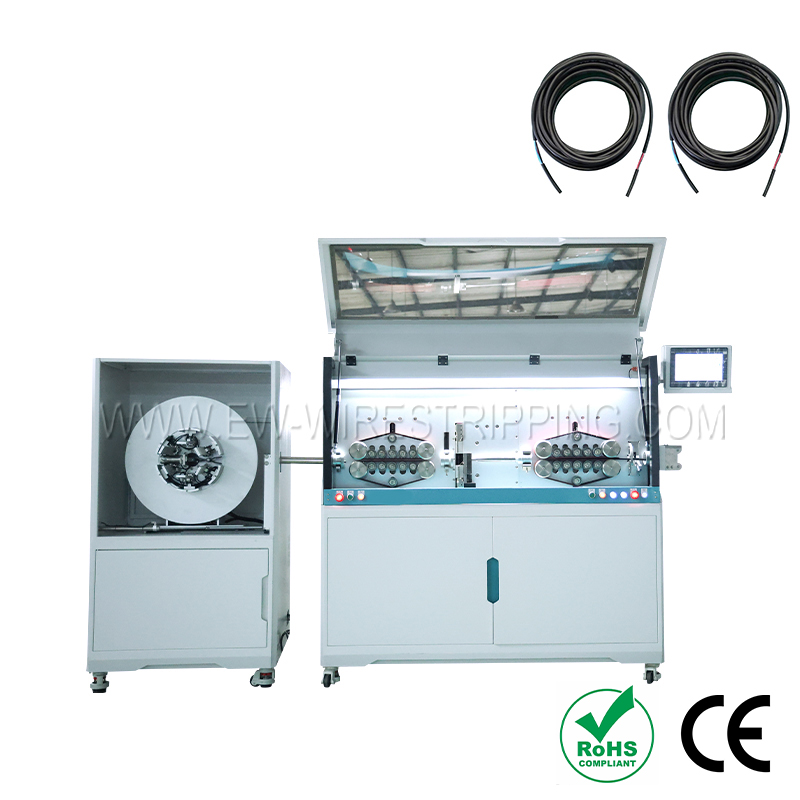

Function |
Vertical winding and coiling |
|
Display Mode |
digital tube |
|
Cylinder |
SMC |
|
Wire type |
Wires, cables, shielded cables, etc. |
|
Control method |
Host follow control |
|
Reel diameter |
680mm |
|
Coil diameter |
200-650mm |
|
Rolling speed |
1.5M/s |
|
Drive mode |
servo motor |
|
Number of receiving trays |
one |
|
How it works |
Single cycle |
|
Rewinding completion detection |
none |
|
Safety devices |
Pneumatic safety door |
|
Dimensions |
746*746*1000 |
