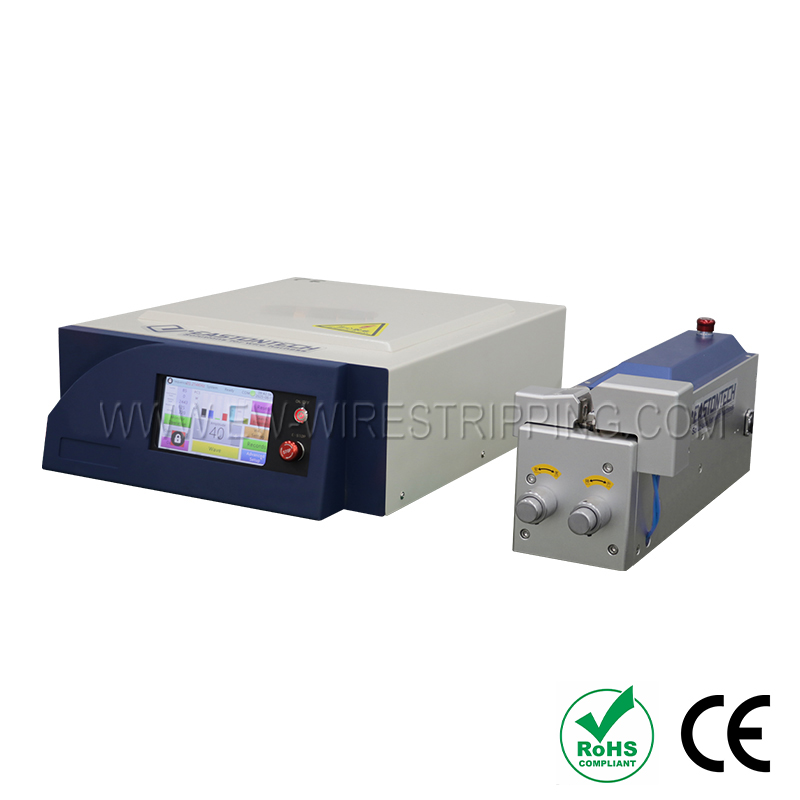

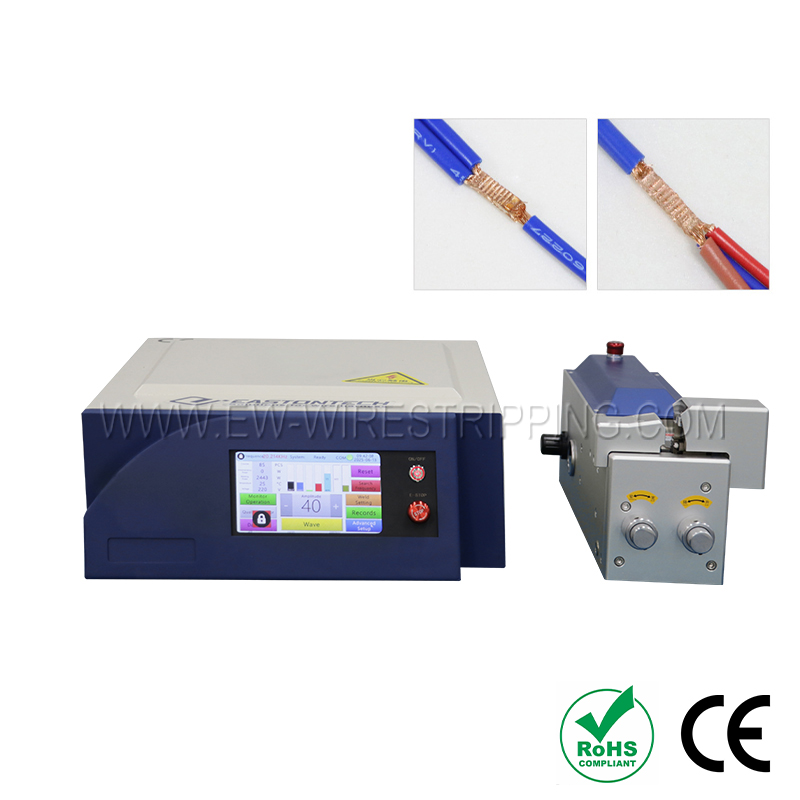

Ultrasonic Wire Welding Machine (0.5-20MM2)

Model：Ultrasonic Wire Welding Machine (0.5-20MM2)

Share to:

Model:EW-6040
Welding area range:0.5-20mm2
Maximum output power:6000W
Operating frequency:20HZ
Welding time range:0.3-2S

Video

Technical Data

Model	EW-6040
Language selection	Chinese/English
Input voltage	220V
Control mode	MCU
Maximum output power	6000W
Operating frequency	20HZ
Welding time range	0.3-2S
Welding area range	0.5-20mm2
Operating humidity	0-40°
Working air pressure	0.2-0.8Mpa
Ambient temperature	20-70
Bracket dimensions	461514cm
Electrical box dimensions	581846cm
Machine weight	40KGS
Pedal Start	YES
