Model |
EW-1360 |
|
Weight |
145kg |
|
Display mode |
7-inch human-machine interface |
|
Power supply |
AC220/50Hz Optional 110V 50/60Hz |
|
Function |

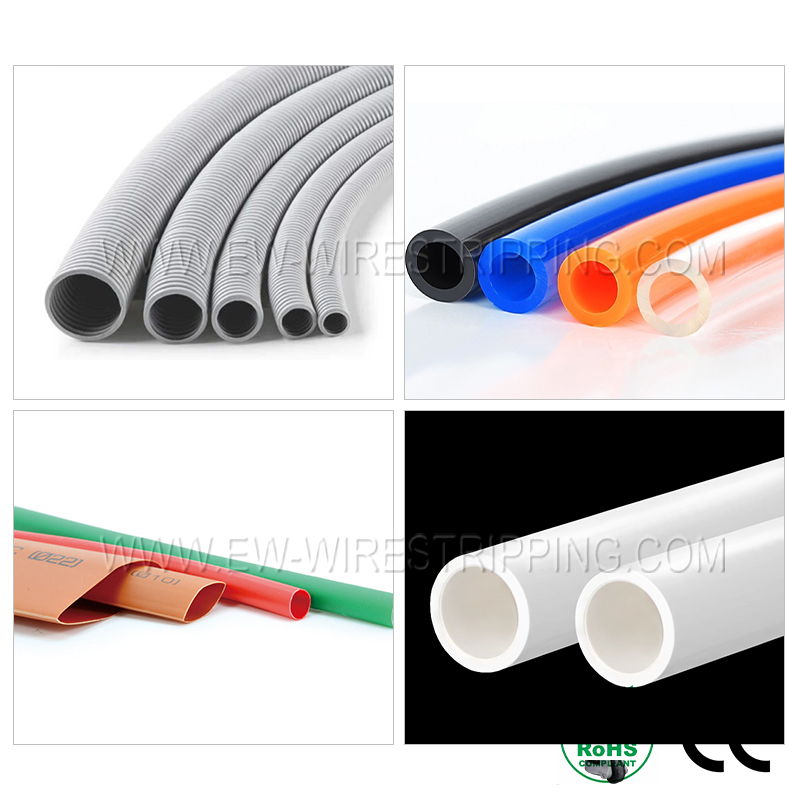

Air pipe/low pressure oil pipe/PVC pipe/heat shrink tube, etc. various plastic pipes can be cut to fixed length. |
|
Processing scope |
4-50mm |
|
Cut off length |
1mm-999999.99mm |
|
Cutting tolerance |
Within 0.003*L (L=cutting length) |
|
Maximum diameter allowed |
¦µ52mm |
|
Productivity (times/hour) |
4000 PCS/hour (100mm/diameter 10mm) |
|
Drive mode |
14-wheel drive; Optional servo motor |
|
Feeding method |
Belt feeding, no embossing or scratching on the pipe. |
|
Tool holder control mode |
Servo motor + grinding screw |
|
Lifting operation mode |
Digitally adjustable pressure roller height |
|
Air source |
No air source required |
|
Dimensions (length*width*height) |
950*670*1300 (length, width and height) |
|
|
