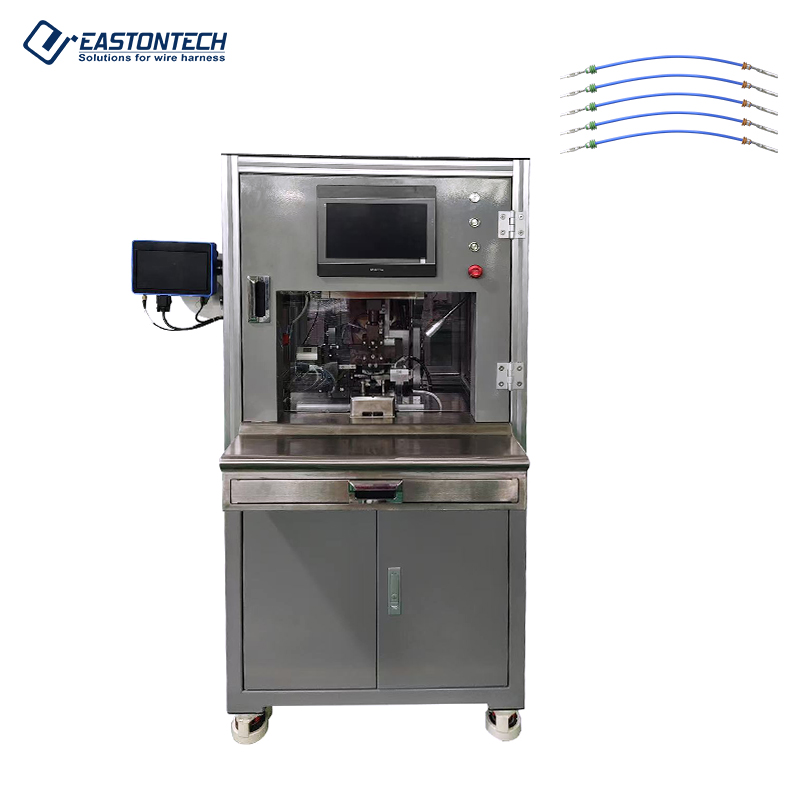

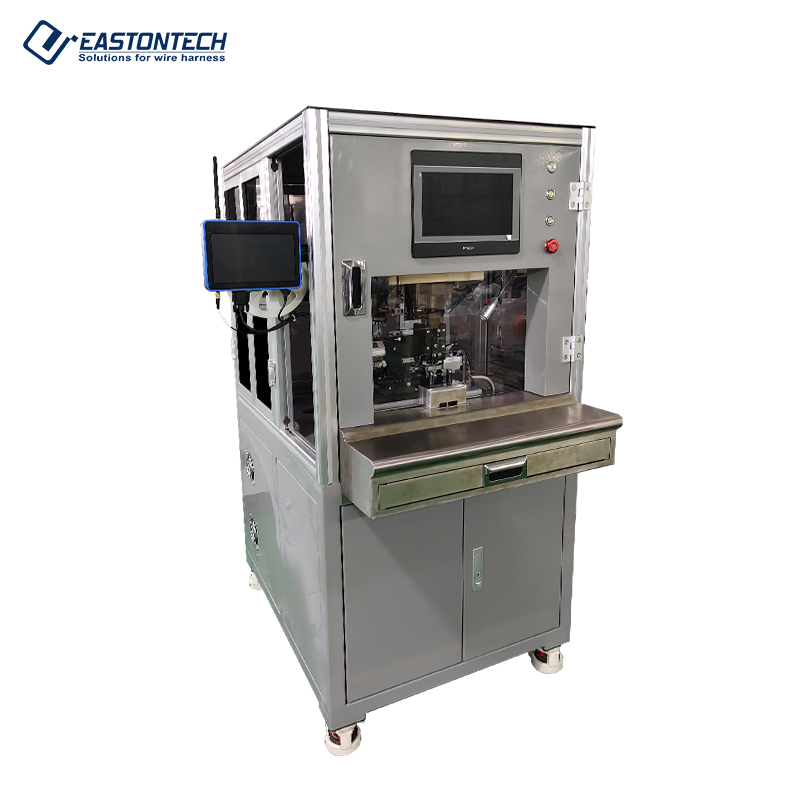

Fully Automatic Wire Stripping Waterproof Plug Insertion and Terminal Crimping Machine

Model：Fully Automatic Wire Stripping Waterproof Plug Insertion and Terminal Crimping Machine

Share to:

ENQUIRE NOW!

Model: EW-9510
Cable Range: 0.2mm² to 2.5mm² (3.0mm² and above available as an option)
Stripping Length: 0～10mm
Crimping accuracy: ±0.08mm
Capability: 800-1000pcs/hour

Video

Technical Data

Model	EW-9510
Applicable wire diameter	0.2mm² to 2.5mm² (3.0mm² and above available as an option)
Cable Type	Single / Double Cable
Applicable Waterproof Plugs	≤φ9*8.5
Stripping Length	0～10mm
Yield Rate	≈97%
Crimping accuracy	±0.08mm
Storke	40MM
Control method	Servo Crimping
Capability	800-1000pcs/hour
Power	AC 200V 50HZ
Compressed air	0.5-0.7Mpa
Weight	360KG
Size	L 1100 X W700X H 1460mm
