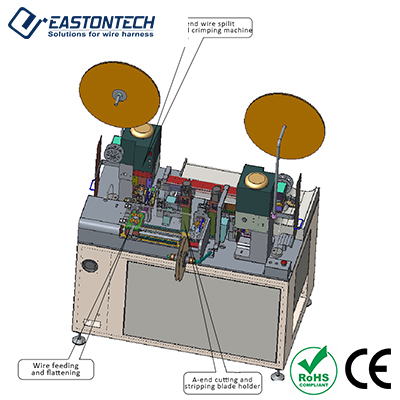

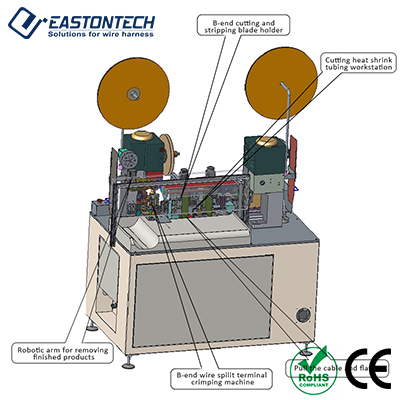

Multi-core Cable Stripping Crimping and Shrink Tube Inserting Machine

Model：Multi-core Cable Stripping Crimping and Shrink Tube Inserting Machine

Share to:

ENQUIRE NOW!

Model: EW-9365
Applicable wire diameter: AWG28-18 (0.1-1.0mm2）
Cable outer diameter: 3~7mm
Cutting length: 160~9999mm
Stripping length of the outer sheath: wire head 30~160mm, wire tail 30~65mm

Video

Technical Data

Model	EW-9365
Stripping length of the outer sheath	wire head 30~160mm, wire tail 30~65mm
Shrink tube cutting length	15mm-40mm
Suppress ability	2T
Air pressure	0.5~0.8Mpa
weight	600kg
Appearance size	L1450 W900 H 1900
power supply	AC220/110V/50/60Hz
Capacity	650pcs/hour (Eight-core wire: L=500mm, double layer stripping, crimp 16 terminals, and insert heat shrink tubing)
Foot pedal start	N/A
