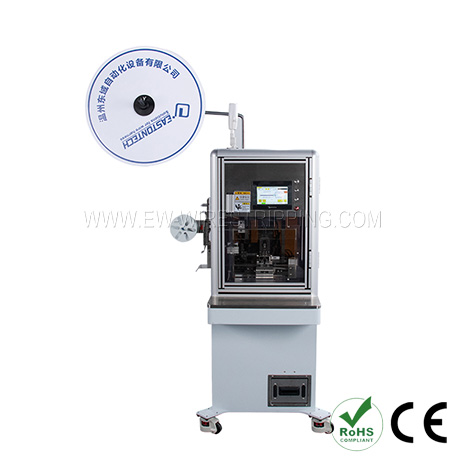

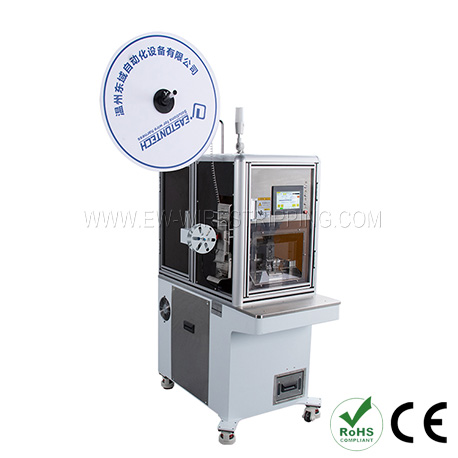

0.2-2.5mm2 Semi-Automatic Waterproof Plug Stripping Plus Crimping Terminal Machine

Model：0.2-2.5mm2 Semi-Automatic Waterproof Plug Stripping Plus Crimping Terminal Machine

Share to:

ENQUIRE NOW!

Model: EW-5030
Applicable wire diameter: 0.2~2.5mm²
Stripping length: 0mm-10mm
Tangent error: ±0.02mm
Crushing ability: 3T
Air source: 0.5-0.7MPA
Body size: 850*880*1300
Total weight: 300KGS

Video

Technical Data

Model	EW-5030
Applicable wire range	0.2-2.5mm²
Stripping length	0.1-10mm
Cut precision	±0.02 mm
Stroke	40mm
Crimp capacity	3.0T
Power	220V/110V/50/60HZ

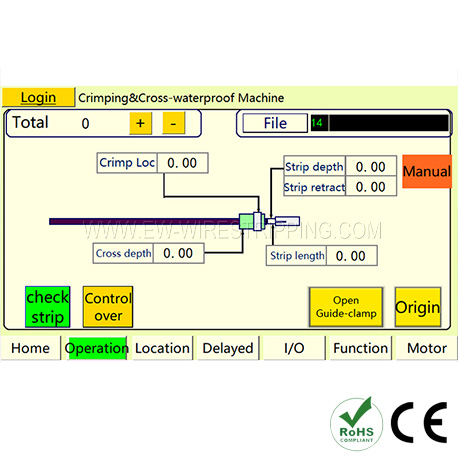

Display language	Chinese/English
Compressed air	0.5-0.7MPA
External dimensions	850mm880mm1300mm (length, width and height)
Weight	300KGS
CFM	Optional

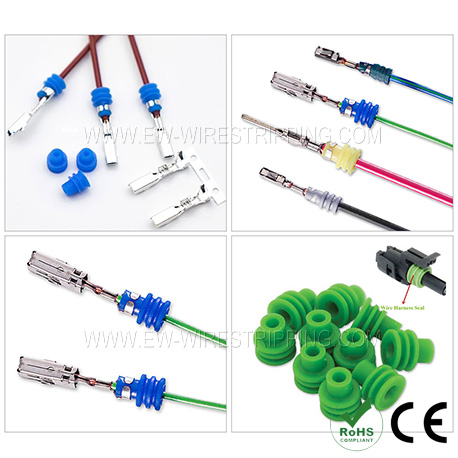

Waterproof plug size	≤10*10mm
