Cable Middle Strip Machine

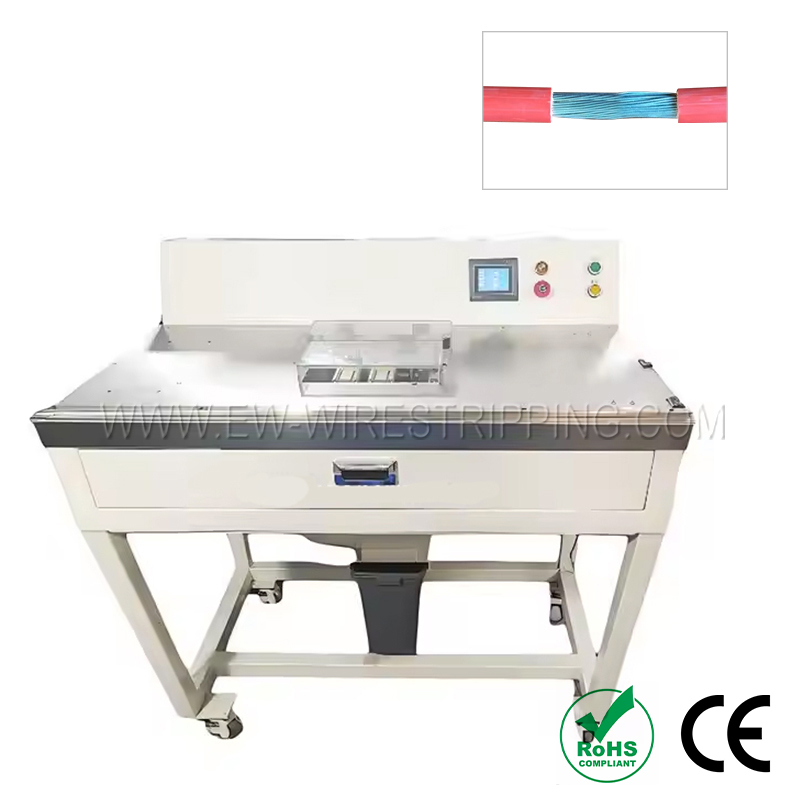

Model：Cable Middle Strip Machine

Share to:

ENQUIRE NOW!

Model: EW-3365
Wire Range: 0.3-4.0 sqmm, Customizable

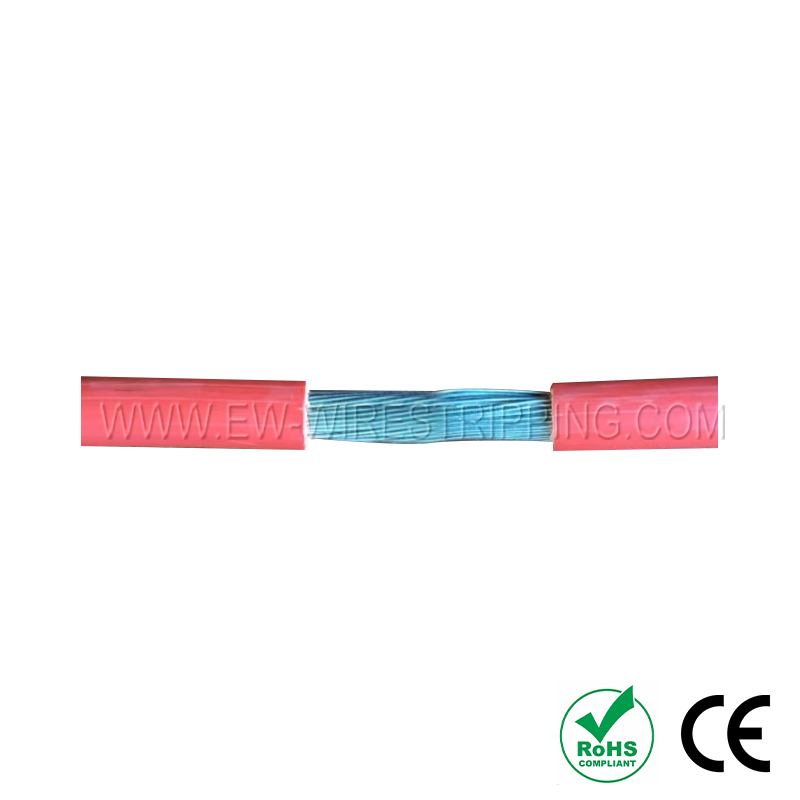

Middle Strip Distance: 20mm, customizable
Length from middle strip to wire head: 100mm or more can be customized

Video

Technical Data

Model	EW-3365
Wire Range	0.3-4.0 sqmm, Customizable
Length from middle strip to wire head	100mm or more can be customized
Middle Strip Distance	20mm, customizable
Cycle time	3-4 seconds
Voltage Frequency	220v-250v，50Hz （Customizable）
Air Pressure	0.5-0.8Mpa
Power	200W
Size	L500W2000H900mm
Weight	75kg
